iOptron Tri-Pier - 8034

Description

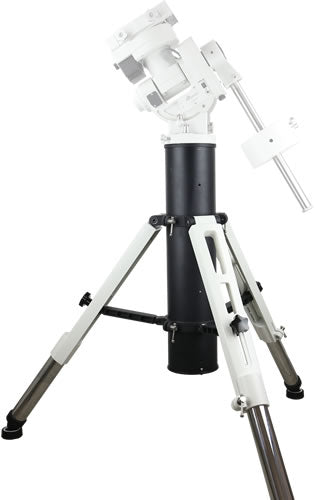

iOptron Tri-Pier
for CEM60, iEQ45/30 Pro, MiniTower & AZ Mount Pro* Mounts

iOptron's Tri-Pier makes a highly stable base for any AZ Mount Pro*, CEM60, iEQ45 Pro, iEQ30 Pro, MiniTower Pro & MiniTower II telescope mount. With a weight capacity of 220 pounds (100 kg), this Tri-Pier gives users a maximum payload that exceeds most tripods currently on the market but also has height adjustment and leveling capabilities that are rarely seen on a traditional pier.

The iOptron Tri-Pier is made of aluminum and stainless steel for strength and long-lasting good looks. An optional adapter plate allows the user to use the Tri-Pier with mount brands other than those listed on this page. *If you are going to use the Tri-Pier with the AZ Mount Pro, you will need the 8034-PIER, which includes a modified attachment bolt.



iOptron Tri-Pier Specifications

• Max Payload: 220 lbs (100 kg)

• Tri-Pier Weight: 25.6 lbs (11.6 kg)

• Pier Diameter: 5.7" (144 mm)

• Height Adjustment Range: 31.3"-43" (795-1095 mm)

• Uneven Ground Range: 3.35" (85 mm)

• Max Leg Spread: Ø46.5" (Ø1180 mm)

• Pier Dimension Folded: Ø12.8"x 25.6" (Ø325 x 650 mm)



Supplier SKU

8034
